Blade Length
Scythe blades range in length from short (16") bush blades to sizes
beyond 30". The shorter bush blades are heavier to take the stress
of cutting woody growth. Shorter blades are more maneuverable in tight
places.Grass blades are lighter in weight and can be longer. Longer blades
are more efficient in the open. A 24" blade is a good compromise.
As you become more proficient the larger size blades become more comfortable
to use. Click here to see more
on blade types and selection.
Sharpening
The traditional method of preparing the edge uses a cross peen hammer
and a small anvil. A hammering jig also gives good results and avoids
the freehand uncertainties of the anvil. The peening process takes advantage
of the plastic nature of metal. Hammering the cutting zone (about 1/8"
inch wide) draws the metal out, thinning it for easier sharpening.This
beating also work hardens the metal and enhances edge retention. A whetstone
is used to finish the sharpening but in doing so abrades the edge and
wears it back so eventually you will have to re-peen to restore thinness.
Mounting the anvil or jig
Either of these two tools can be held in a bench vise. This will
work, but the vise may not be at a convenient height or in good light.
A better idea is to mount them into a section of log. You'll want a log
tall enough to bring the blade to approximately lap level when you're
seated—we have used a log that's about 20" high. Soft wood will
be easier to drill and of course try to make both ends as flat and square
as possible. For the anvil, drill a 1/2" hole not quite as long as
the tapered point. This will allow the anvil to seat solidly, prevent
the wood from splitting and permit the anvil to be removed with a small
pry bar without too much effort. The peening jig should be set into the
log by first drilling a shallow (about 1/4" deep) 7/8" diameter
hole to accomodate the weld on the underside. Continue the hole with a
1/2" bit to fit the tapered leg. Drive them down with a wooden mallet
so they make firm and flat contact. We have installed both the anvil and
the jig into the same log for convienence. The two caps that are part
of the jig setup are kept handy in holes drilled to the side. We got a
little fancy by attaching a piece of rope around the log, using fence
staples to provide loops to hold my hammers. The rope also forms a top
handle that allows the whole thing to be lifted and carried.
Peening lies somewhere between
the art of jewelry making and
blacksmithing.
You are using the hammer to redistribute the metal ever so slightly. Think
of the steel as a very dense modeling clay that can be coaxed into shape
by moderate repetitive force. Heavy hammer blows are unnecessary. A firm
yet sensitive strike that makes a good solid sound is your goal.
Hammer & anvil—the cutting zone is drawn over the crown of the anvil gradually as the hammer strikes the metal. Coordinate the blade movement with the frequency of hammer blows. Try to keep the edge flat on the anvil crown. Peening of a new blade will take many passes. Don't try to do it all in one pass of the blade's length. Set an easy sustainable rhythm and work the blade from the beard to the tip. Examine the results, and start over again. With good light you should be able to see the results of each hammer blow during the process. The metal will seem to expand forward and become thinner. Remember you should be more like a jeweler than a blacksmith with the force of your hammer. As your edge approaches final thinness lighten the force of the hammer.Continue peening the blade's length as evenly as possible. When do you stop? Press your thumbnail on the underside of the cutting edge and slide it along (carefully), you should notice a barely perceptible wave as the edge deforms. At this point the edge is about the thickness of paper. If the blade has begun to crack or fissure you have over peened, but very light corrective taps can mend slight problems. Remember that most of a blades final sharpness is the result of good hammering, the whetstone only finishes an already sharp edge.

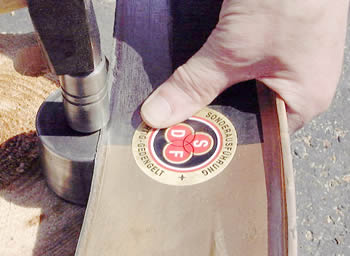

Jig —the same sensitivity and guidelines that
apply to the hammer and anvil are used with the jig. The jig comes with
two caps. The cap marked with
one ring is used first to establish a primary bevel. The cap marked with
two rings finishes the process. Place a cap over the jig's post, slip
the blade under the cap in very light contact with the post. Keep the
blade flat on the jigs shoulder. Gradually draw the blade under the cap
as you strike with the hammer. Work from beard to tip using a flat hammer—a
common carpenters hammer of between 16-20oz. if fine. Allow the cap to
rotate from the motion of the blade to allow for more even wear of the
contact surface. Use cap #1 to establish a primary bevel, then use cap
#2 for the finishing passes. Expect to make multiple passes to bring the
blade to useable condition. Keep your hands close to the center line of
the jig for better control. You may even be able to touch the jig
with your fingers underneath the blade. When your grip on the blade has
moved out of the comfort zone, stop to relocate your position.
Sharpen
for your intended use. A long thin cutting edge that is good for fine
tender grass will be too weak and fragile if used on tough, woody stems.
For heavier work keep the area that is hammered narrow, to support the
cutting edge and make it stronger. Experience will guide you to
the best compromise, giving you a sharp effective edge that will hold
up to occasional abuse.
If your blade is damaged and in need or repair, click here.
